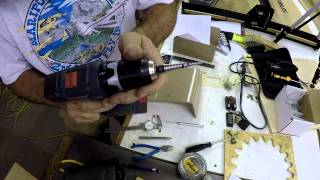

I received a Darex M series model drill grinder from a viewer. It is missing the parts to be capable of grinding Twist drills with a standard 118 deg grind. the grinder has been out of production since the late 90's. Darex no longer make or supply parts for these grinders. I contacted Darex and they were very helpful. They were able to supply me with a couple of the drawings but not all since they do not have them. But with help from several viewers I was able to get dimensions and photos of the parts that I need to make. I was then able to model all the parts using Fusion 360 and make drawing of the parts. FPlease Subscribe: https://www.youtube.com/channel/UCmeR2apcSAeH21q-xcNwdfw?view_as=public Follow me On Instagram: https://instagram.com/rrintheshop/ Dovetail Cutter and Scribe info: Email To: [email protected]
